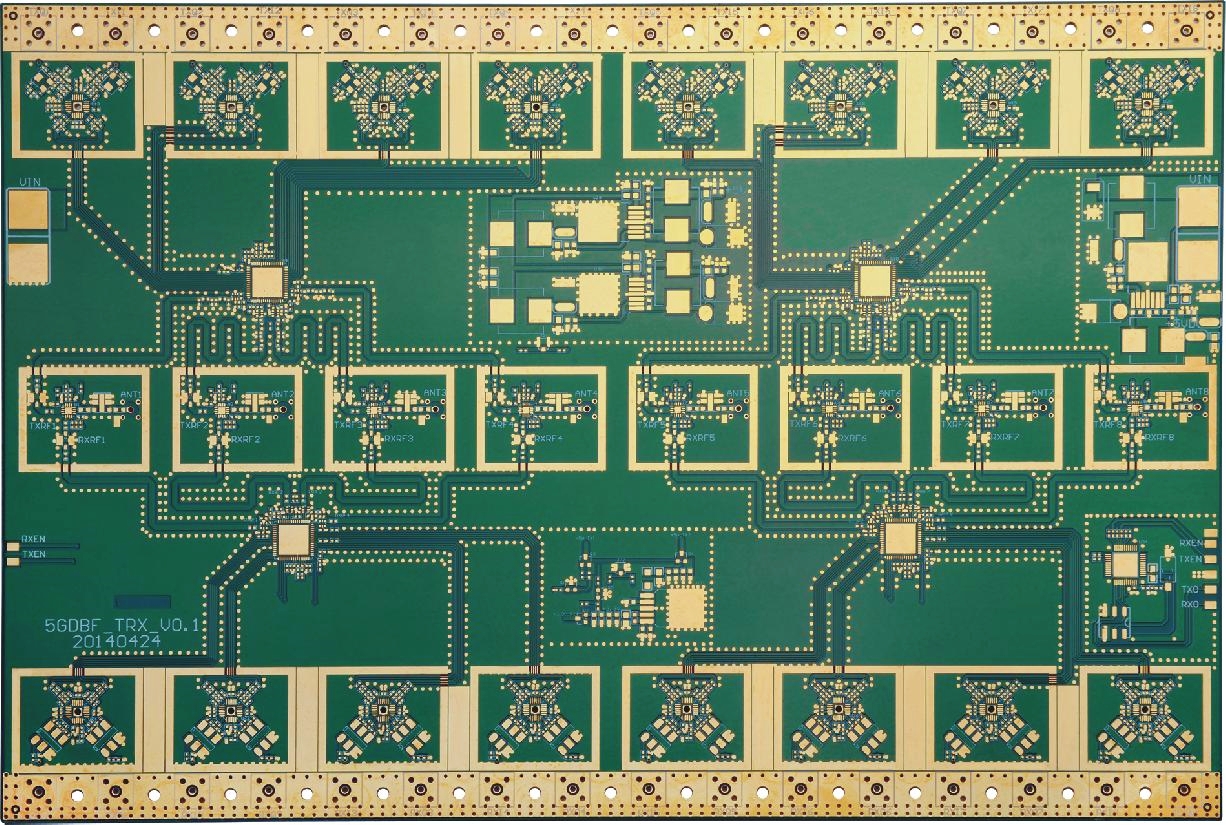

Rogers high-frequency mixed voltage PCB microwave RF circuit board
B1002
Quantity
▪ Number of layers -8L
▪ Material - MT77
▪ Plate thickness -1.43mm
▪ Inner and outer copper thickness -1oz
▪ Minimum line width/line spacing -0.25/0.25mm
▪ Minimum aperture -0.3mm
▪ Surface Treatment - Gold Deposition
▪ Others -0.127mm back drilling
What is a high frequency pcb?What is rogers pcb board？
high frequency pcb typically provide a frequency range from 500MHz to 2GHz, which can meet the needs of high frequency pcb design, microwave, RF, and mobile applications. When the frequency is higher than 1 GHz, we can define it as high frequency pcb.
high frequency pcb typically provide a frequency range from 500MHz to 2GHz, which can meet the needs of high frequency pcb design, microwave, RF, and mobile applications. When the frequency is higher than 1 GHz, we can define it as high frequency pcb.
What materials do we need to choose for making high frequency pcb?
Generally, FR-4 fiberglass board is sufficient for frequencies around 1-5G, but high frequency pcb materials such as semi ceramic materials should be used. Commonly used Rogers PCB board include ROGERS4350 series, 4003 series, 5880 series, etc
If the frequency is already higher than 5 G, it is best to use PTFE material, which is polytetrafluoroethylene (PTFE). This material has good high-frequency performance, but there are limitations to the processing technology, such as the inability to perform surface leveling with hot air.
Advantages of rogers pcb board？
For various reasons,rogers pcb board is the best choice Rogers material is the preferred choice due to its excellent performance under harsh conditions, as well as its quality and practicality Despite their higher cost compared to other materials, rogers pcb board has numerous advantages, including:
For various reasons,rogers pcb board is the best choice Rogers material is the preferred choice due to its excellent performance under harsh conditions, as well as its quality and practicality Despite their higher cost compared to other materials, rogers pcb board has numerous advantages, including:
Excellent high-frequency performance and low dielectric loss
Low voltage rogers pcb board PCB manufacturing
Improved impedance control
Excellent thermal management capabilities
Suitable for low release space applications
Low voltage rogers pcb board PCB manufacturing
Improved impedance control
Excellent thermal management capabilities
Suitable for low release space applications
