What are the differences between the circuit boards of BGABoard and JLC PCB?
BGABoard has been focusing on the manufacturing of BGA boards for 20 years, mainly producing high frequency, high-speed, soft and hard combination circuit boards, ceramic board carrier boards, etc.
Their corporate philosophy is Do It Right The First Time.Strict inspection standards provide first-class products and services for customers with quality requirements.
JLC PCB is mainly used for covering FR-4 double-sided hard board, FPC soft board, thermoelectric separation copper substrate, aluminum substrate and other board types.
In addition, the company also provides PCBA sampling/small batch, EDA/CAM industrial software, steel mesh/fixtures, FA mechanical parts mall, 3D printing, CNC mechanical intelligent manufacturing, sheet metal processing and other technologies and services。
We use PCBs made by customers to verify the differences between the two companies

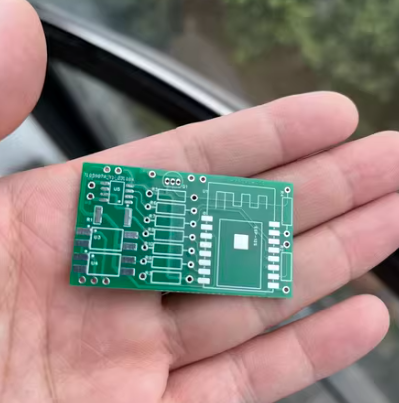

The following is a board made by jlcpcb, from customer samples：
JLC PCB-1 JLC PCB-2 JLC PCB-3
JLC PCB-4 JLC PCB-5 JLC PCB-6

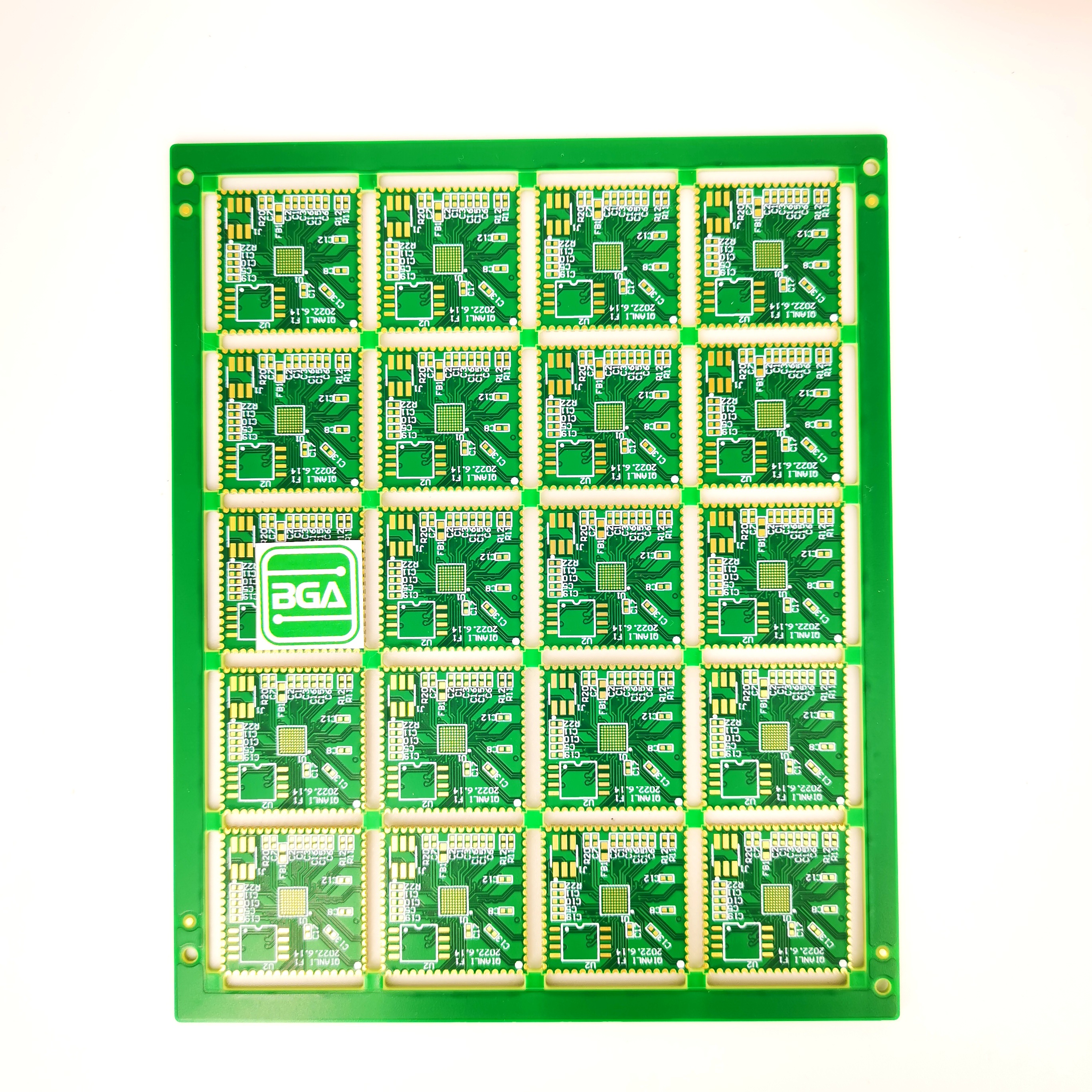

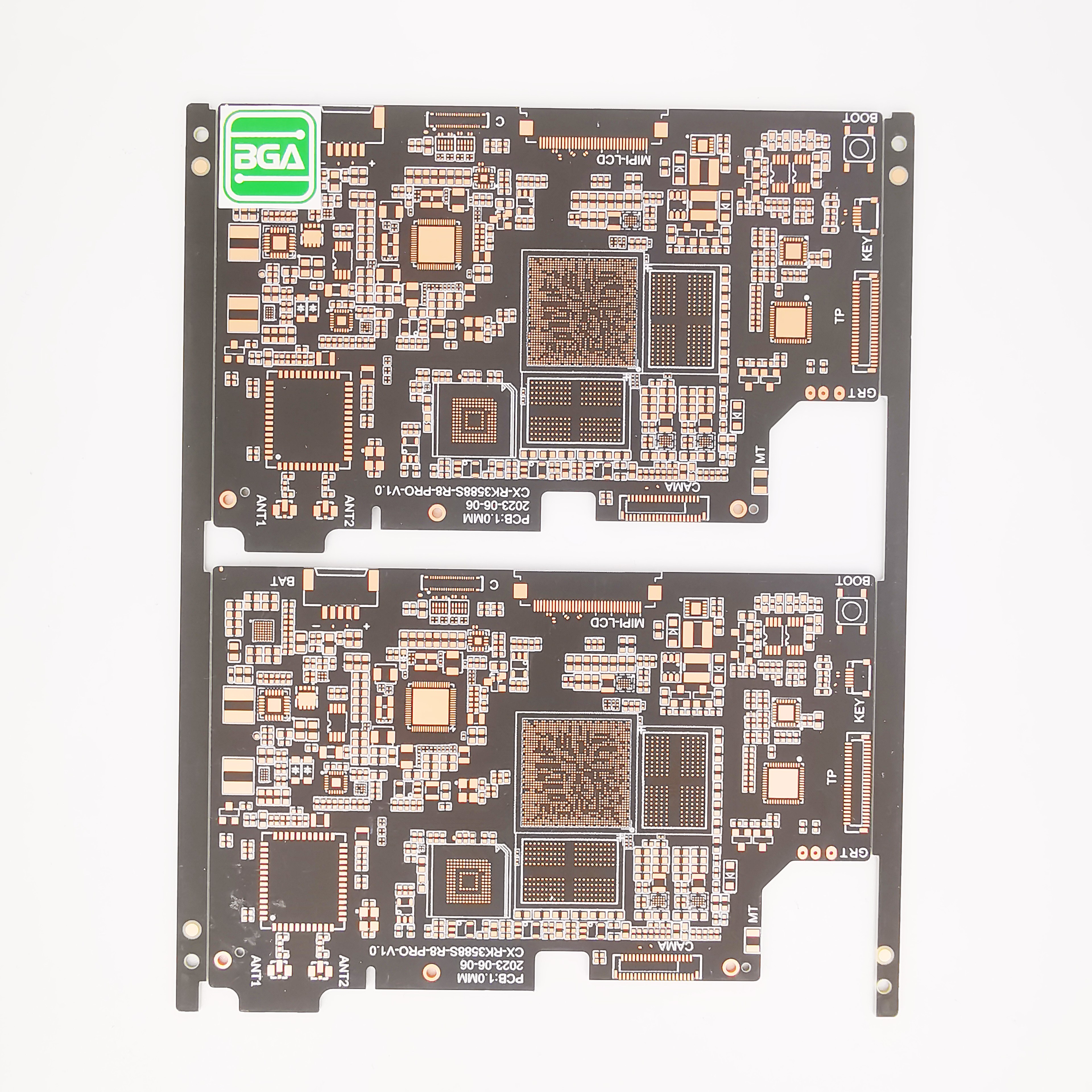

The following are boards made by BGABoard, from customer samples
BGABoard-1 BGABoard-2
BGABoard-3 BGABoard-4
BGABoard-5 BGABoard-6
From the PCBs of the two companies, JLC PCB mainly produces double-sided boards, and usually they also make a small number of multi-layer boards. If your multi-layer board does not have high quality requirements, you can choose JLC PCB. BGABoard mainly produces BGA multilayer boards with 6 or more layers, which have high requirements for equipment accuracy and quality control. If you have strict requirements for PCB quality, you can choose BGABoard.
BGABoard will provide you with free technical support and services from your dedicated engineers throughout the entire process upon receiving your gerber. BGABoard will have professional engineers verify your PCB gerber files and provide timely and reasonable optimization suggestions. BGABoard helps you make a good PCB board at once, reducing potential risks caused by design errors.
BGABoard Engineering Team
BGABoard Engineering Team
JLC PCB has a huge number of double-sided samples, which are audited by a computer system. The engineering data is also processed uniformly by computer set parameters, which simplifies the process and saves time. However, for complex multi-layer boards, relying solely on computer automatically set parameters for engineering data cannot guarantee the integrity of PCB production, which poses great risks to complex circuit boards.
The processing method of engineering data is an important factor in determining whether a PCB can be successfully made. In terms of processing engineering data, BGABoard has chosen engineers with an average working experience of more than 10 years to handle customer data, ensuring the accuracy of PCB data and timely discovering PCB design issues and vulnerabilities, reducing the risk for customers by 99.99%. However, due to their focus on double-sided PCB boards, JLC PCB's production process design places greater emphasis on speed and efficiency. All these processes are completed by computer systems, which improves efficiency but also brings huge benefits to customers.
The production design of BGABoard adopts a multi-layer board management process, including equipment and technical processes. Strict management and high-end equipment enable BGABoard to produce high, multi-layer, and difficult PCBs.

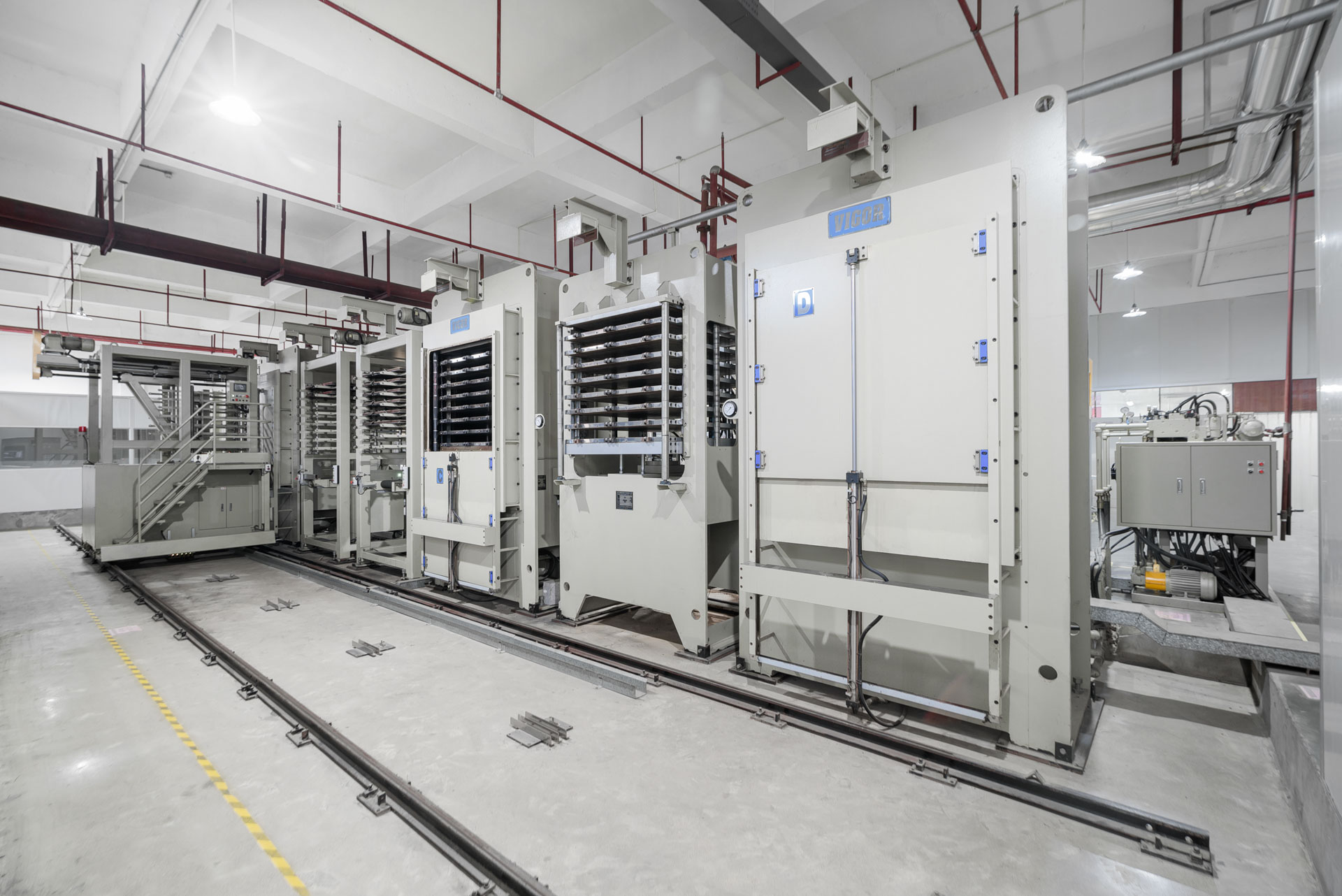

Vacuum laminating machine

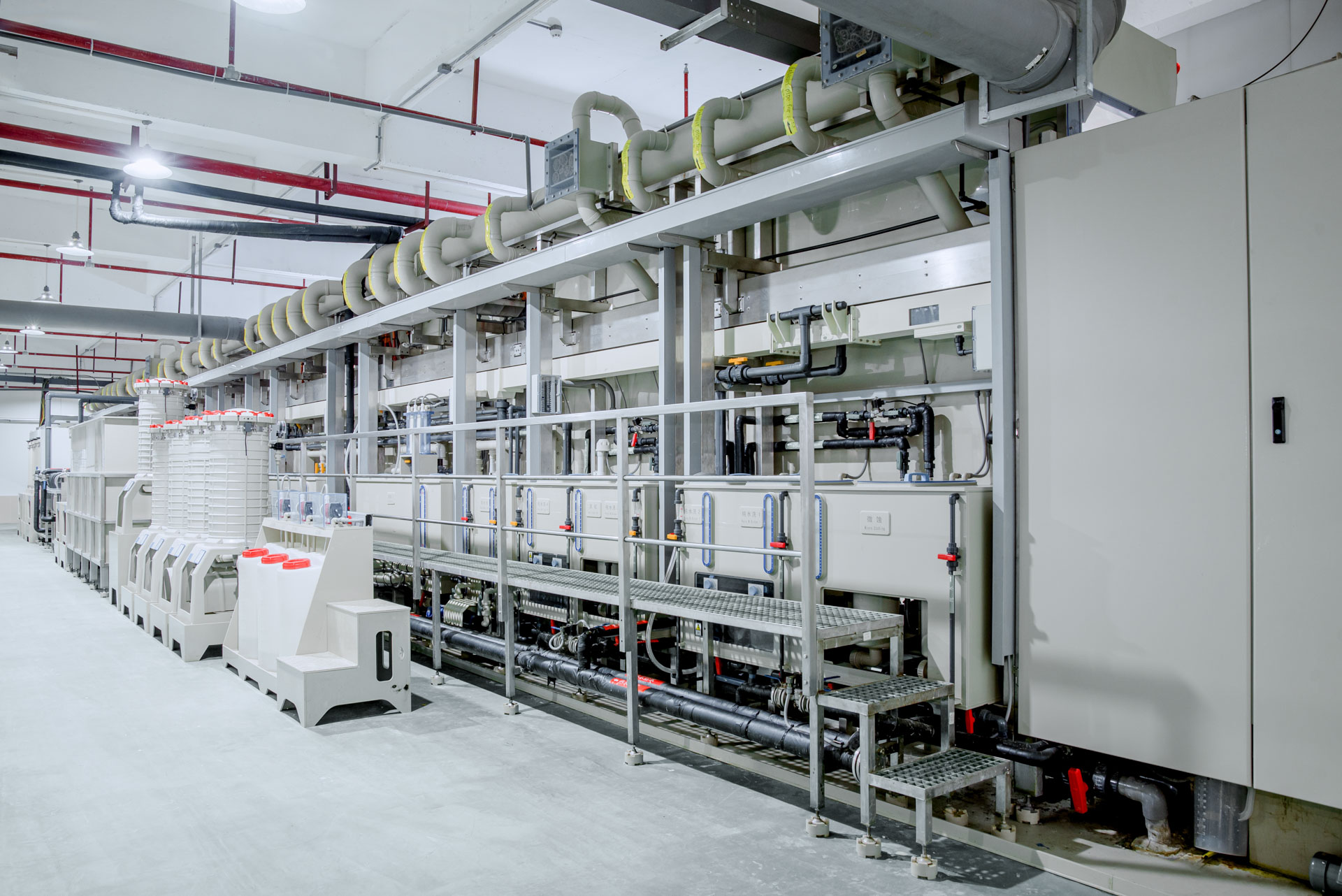

VCP gold plating production line

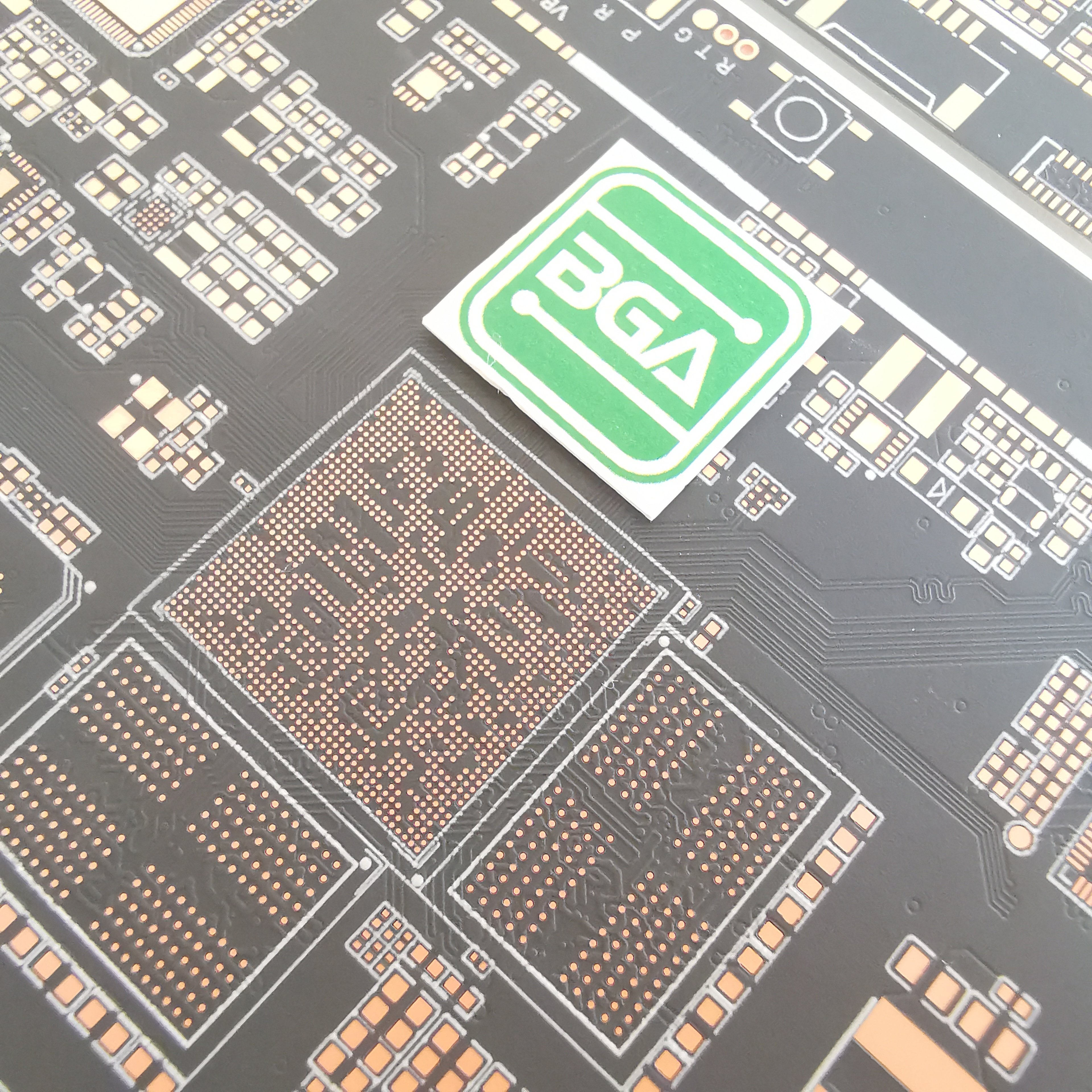

Vias In Pad Design
